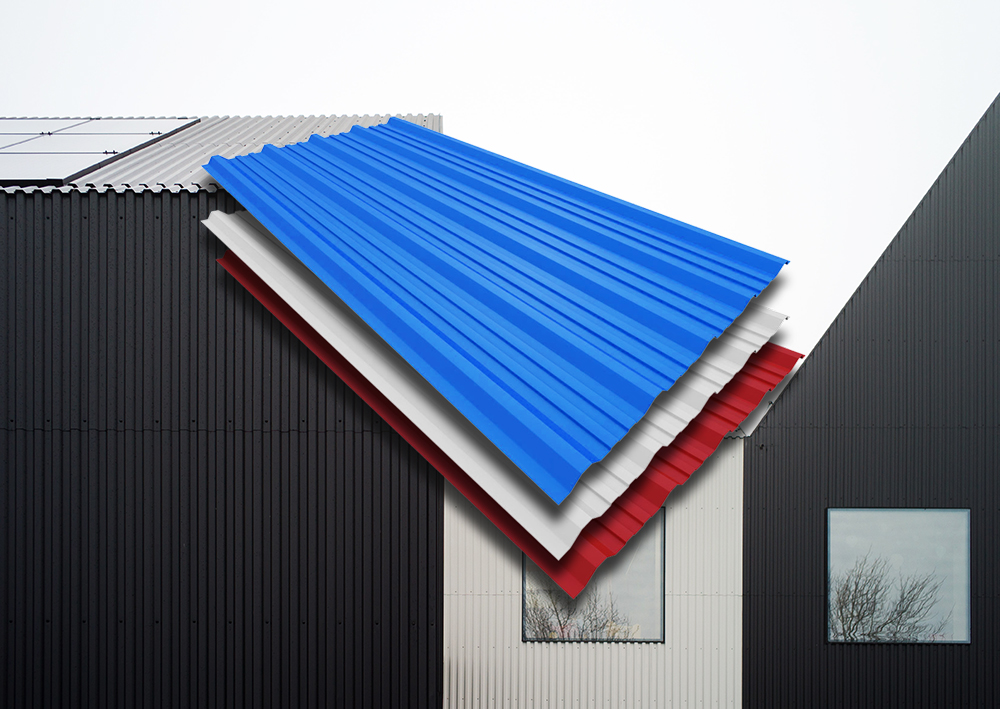

BM Profile Sheet is a trapezoidal ribbed colour coated/PPGI/PPGL steel profile sheet widely used for roofing and cladding purpose in industries, airports, railway stations, showrooms, warehouses, cold storages, stands, malls, stadiums, houses and real estates. Its high strength and supreme paint quality enhances the longevity of sheet unbelievably. BM Profile Sheet is available in pre-painted galvanized/GI(PPGI), Prepainted galvalume (PPGL) and bare galvalume (GL)/BGL form.BM Profile sheets are being supplied under brand names JSW COLOURON +, JSW PRAGATI + & JSW SILVERON + which are major premium roofing sheet brands of JSW Steel.
Off White
Light Blue
Brick Red
Nova Blue
Environment
Mist Green
Graphite Grey
| Covered width | 1020 mm | Crest width | 26mm/ 82mm (upper/ lower) |
| Supply width | 1100 mm | Crest height | 29 mm |
| Pitch | 255 mm | Lip | 10 mm |
| Thickness | 0.30mm-0.80mm | Length | upto 12 mtrs. |
|
Covered width |
1000 mm |
Crest width |
25mm/67mm (upper/lower) |
|
Supply width |
1070 mm |
Crest height |
29 mm |
|
Pitch |
200 mm |
Lip |
10 mm |
|
Thickness |
0.30mm-0.80mm |
Length |
upto 12 mtrs. |
|
Covered width |
1200 mm |
Crest width |
25mm/67mm (upper/lower) |
|
Supply width |
1270 mm |
Crest height |
29 mm |
|
Pitch |
200 mm |
Lip |
10 mm |
|
Thickness |
0.30mm-0.80mm |
Length |
upto 12 mtrs. |
|
Zinc coating (GI) |
120-275 gsm |
||||||||
|
Al- zinc coating (GL) |
70-200 gsm |
||||||||
|
Guard film (optional) |
30-40 microns (customised also) |
||||||||
|
Paint system |
|
||||||||
|
Material Standards |
PPGI : IS14246, PPGL : IS15965 / ASTM A792 |
BMPL Profile Sheet is available in a variety of paint systems like
The Base metal (GI-GALVANIZED STEEL/GL-GALVALUME STEEL), after chromating, is coated with epoxy/polyester primer on both the sides for superior adhesion with paint system. The top coat of paint enhances the durability of sheet even in harsh weather conditions. It is highly resistant to cracking, peeling, chalking & fading.
Only prime grade steel is used for manufacturing BMPL Profile Sheet. This steel is procured from reputed makers- JSW steel, AM/NS INDIA, JSW Pragati Plus, JSW Colouron Plus. BMPL is itself an authorised distributor/profiler of JSW colour coated steel coils.
BMPL Profile Sheet provides wider coverage width, without effecting the strength of sheet. Thus , by using it one can save on steel. Availability of customised length also saves steel to a great extent. In addition, wider valley ensures higher & smooth discharge of water during heavy rainfall.
BMPL profile is designed as per IS:801 and international standards. It can withstand high wind pressures and heavy loads. Below is the wind load chart:
| SPAN (between purlins)(m) |
THICKNESS (mm) |
Note: wind load - 150kg/m2 yield strength- 240/350 mpayoung's modulus- 200 GPADeflection- As per IS:801 |
|---|---|---|
| 1.0 | 0.45 | |
| 1.1 | 0.45 | |
| 1.2 | 0.50 | |
| 1.4 | 0.50 | |
| 1.5 | 0.60 | |
| 1.6 | 0.80 |
Superior paint quality, design standard and quality manufacturing process boosts up the life of BMPL Profile Sheet. Proper installation and selection of material doubles the life of these sheets as compared to bare galvanized roofing sheets.
BMPL Profile Sheet gives an elegant look to buildings/sheds. Its attractive design and colours increases the aesthetic value of buildings. It comes in variety of colour shades viz. Light blue(RAL5012), Off white (RAL9002), Capri blue (RAL5019), Brick red , Environmental green, Mist green,Teracotta red,Tauras blue and other customized colours. BMPL Profile Sheet is an obvious choice for roofing/cladding when it comes to long run protection with a distinctive look.
BMPL Profile Sheet is also energy efficient or thermal efficient. It features heat-deflecting coatings that decreases unwanted heat build-up inside the building, thereby reducing cooling loads and creating good working conditions for workers. Based on a research, the reflectivity and emissivity of colour coated steel roofs have been proven to provide significant savings in energy consumption.
